Validation-Ready Sealers
IMPAK's validation-ready sealers are tabletop impulse sealers made for precise heat sealing of pouches for medical applications. IMPAK offers the digital MPDSS and iS2 Series which are built to accommodate most existing medical industry validation protocols. Units may be mounted vertically or horizontally, and 3rd-party calibration services are available. These industrial bag sealers are made for sealing all thermoplastics and films, ruggedly built for years of trouble-free service.
Compare details below or contact IMPAK to speak with a specialist.
Technical Specifications
MPDSS Series | iS2 Series | |
---|---|---|
Controller | Digital - TIC | Digital - SIEMENS |
Validatable | Yes, ports included | Yes, ports included |
Exterior Finish | Stainless Steel | Stainless Steel |
Accuracy | ± 10 degrees | ± 1 degree |
Clean Room Compatible | Yes | Yes |
Adjustable Time | Yes | Yes |
Adjustable Temperature | Yes | Yes |
Manually Adjustable Pressure | Yes | Yes |
Programmable Pressure | No | Yes |
Saves Recipes | No | Yes, up to 5 |
Thermocouple Type | K-Type | K-Type |
Optional Dual Element | No | Yes |
Third Party Certification | Available | Available |
Power | 120V/60Hz (220V available) | 120V/60Hz (220V available) |
Seal Length | 15", 20", 25" | 20", 25" |
Seal Width | 0.25" | 0.25" |
Introducing the UPDATED AND REFRESHED DESIGN of our very successful MPDSS Series Sealers
Now available with updated, highly accurate and reliable Temperature Impulse Controller (TIC)
The MPDSS thermal impulse sealer is ideal for all tabletop medical pouch-sealing applications where budget or space is a paramount concern.
100% US Made

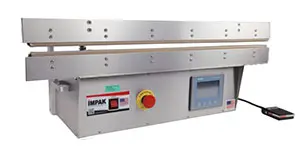

IMPAK Corporation introduces the new iS2 Series Medical Tabletop Sealers which offer unprecedented accuracy and feature an upgraded controller that produces clean validatable seals every time, temperature control within one degree, and accurate sealing times with readings every millisecond. Made in the USA of heavy-duty stainless steel, the iS2 sealers are compact and clean room ready.
Choose from two standard seal lengths: 20” and 25,” with available options such as 220V, dual heating elements, and 3rd party NIST Certification. These thermal impulse sealers boast unparalleled consistency and are ideal for all tabletop medical pouch-sealing applications where budget or space is a paramount concern. We challenge any manufacturer to compete with the accuracy of our iS2 Series Medical Pouch Sealers.
Advantages of the iS2 Sealers
- Advanced Siemens controller
- Temperature accuracy within +/-1 degree
- Temperature readings every 1-2ms
- Control over multiple thermocouple inputs
- Pressure control with 0.1PSI consistency and high tech proportional valve
- Enhanced components and build
IMPAK currently offers the Siemens controller on our iS2 sealers and can retrofit existing equipment, regardless of the manufacturer. Contact IMPAK to upgrade your equipment.
